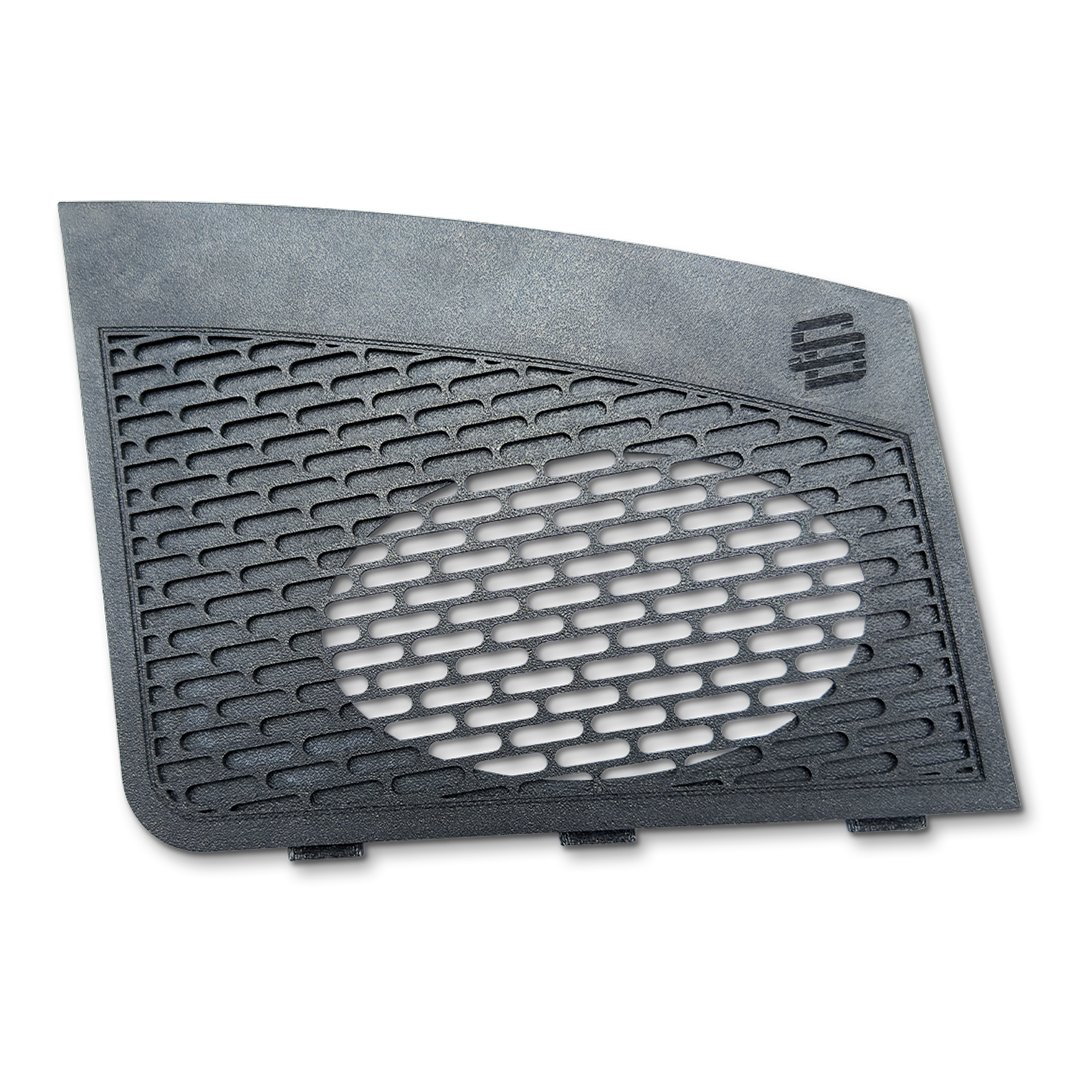

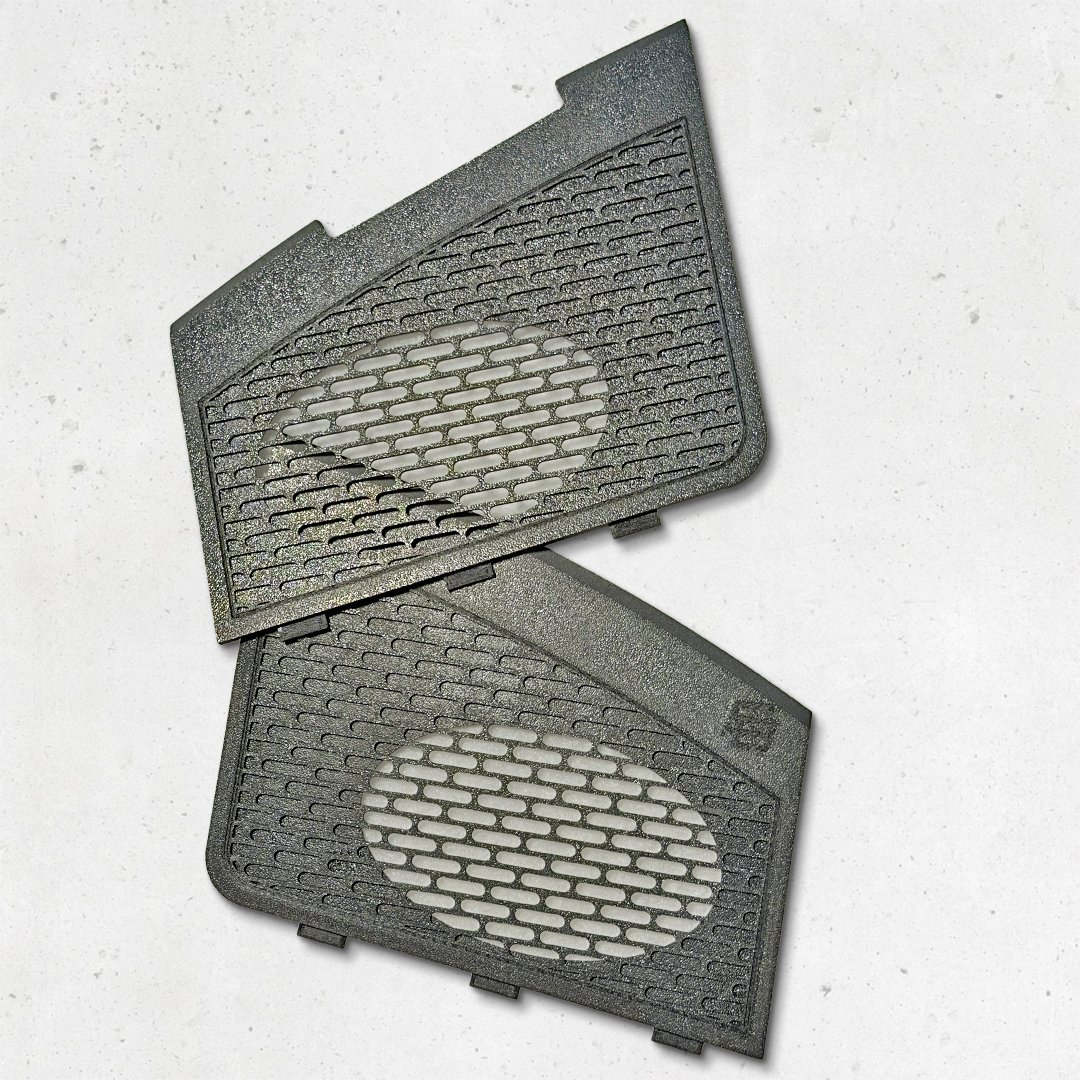

88-94 OBS Dash Speaker Grille

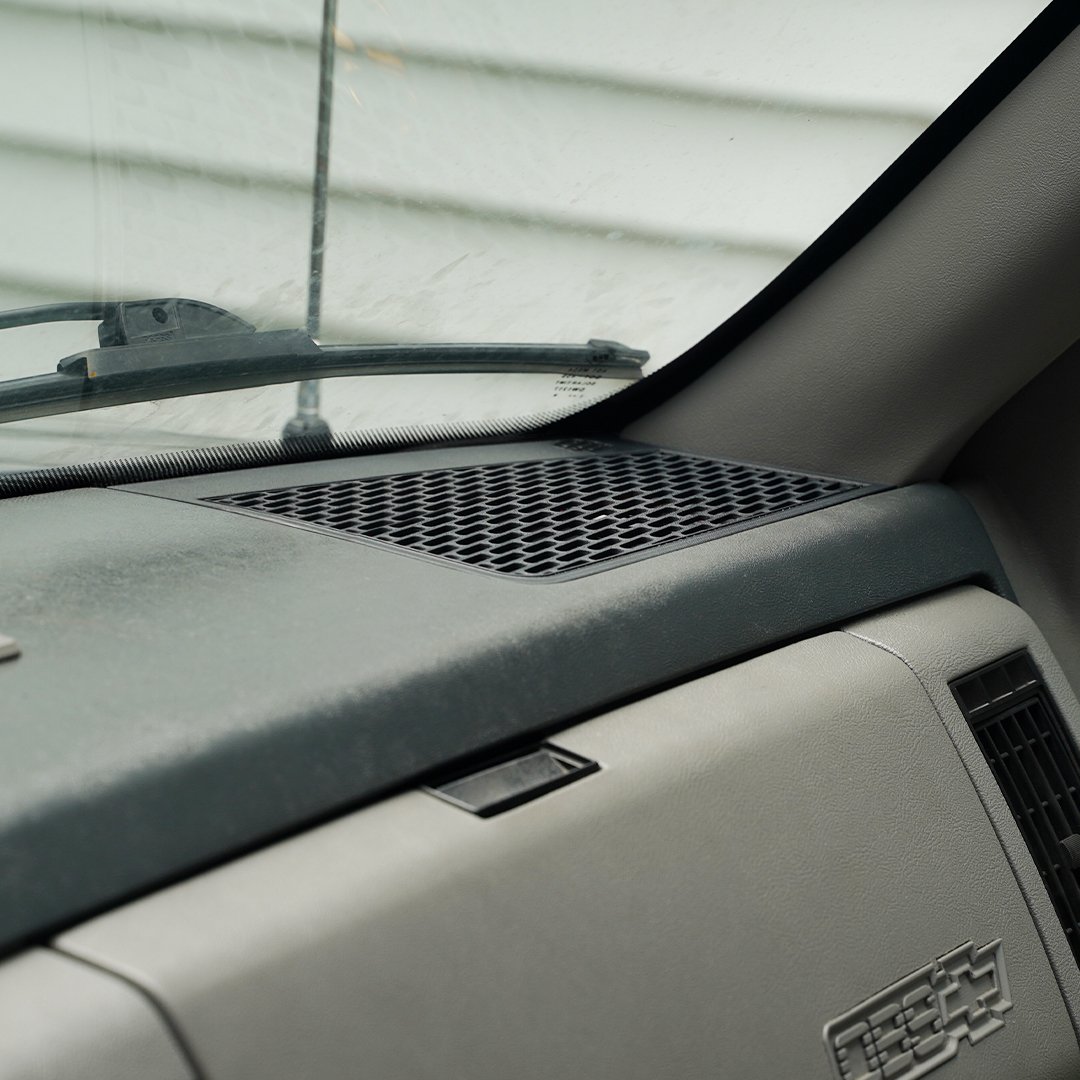

Replaces factory dash speaker grilles on 1988–1994 GMT400 with a modern, re-engineered performance upgrade. Eliminates weak factory clips and broken mounting tabs using a full-length magnetic front retention strip and engineered rear tabs.

3D-printed from ultra-durable, heat and UV-resistant ASA-CF (Carbon Fiber Reinforced ASA) polymer, this two-piece design features a main grille body and a removable/semi-permanent dust cover—allowing for easy custom painting without tedious back-masking.

Key Highlights

• #1 Community-Requested Design: Re-engineered from the ground up to solve the most common factory dash grille failures.
• Magnetic Front Retention: Replaces brittle, easily broken front tabs with a full-length magnetic strip that locks firmly against the dash.
• Redesigned Rear Mounting Tabs: Engineered tabs eliminates the binding and snapping common when removing original grilles.

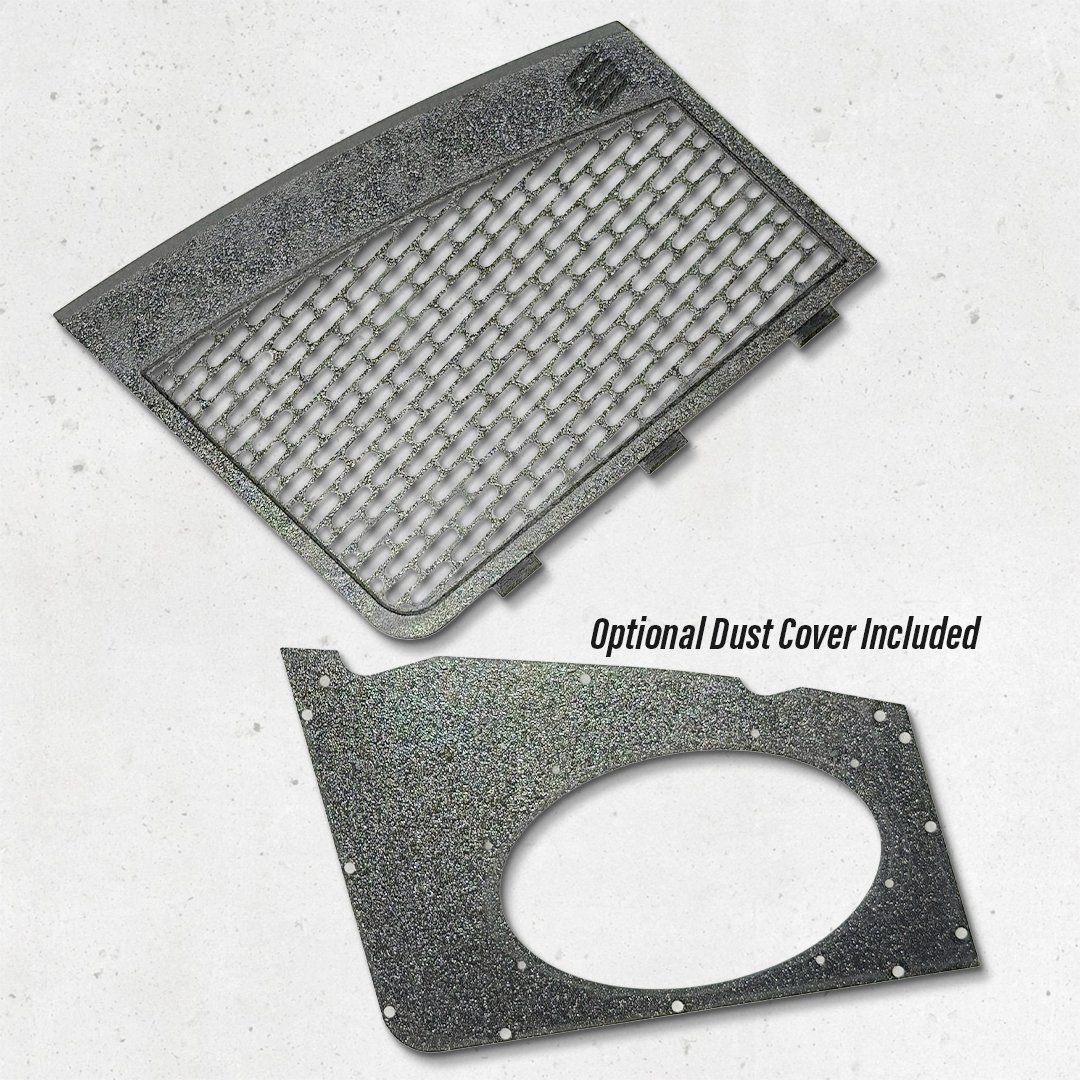

• Two-Piece Modular Construction: Separate main grille body and inner dust cover allow for custom multi-color painting or running an open-grille look.
• ASA-CF Carbon Fiber Construction: Industrial-grade carbon-fiber infused polymer handles extreme windshield heat without warping or fading.

Specifications

• • Fitment:1988–1994 Chevrolet C/K Series (C1500, K1500, C2500, C3500)
  • 1988–1994 GMC C/K Series (C1500, K1500, C2500, C3500)
  • 1992–1994 Chevrolet Suburban, Tahoe & GMC Yukon (Early dash style)
• Material: High-Temp ASA-CF (Carbon Fiber Reinforced ASA)
• Design: Two-piece modular assembly (Main Body + Removable Dust Cover) with magnetic front retention
• Color: Natural Matte Carbon Black
• Customization Note: Fully custom, user-designed grille patterns coming down the road!

Shop Note: Upgrade to a custom modern, magnetic ASA-CF set built to last. Don't let your build go unfinished.

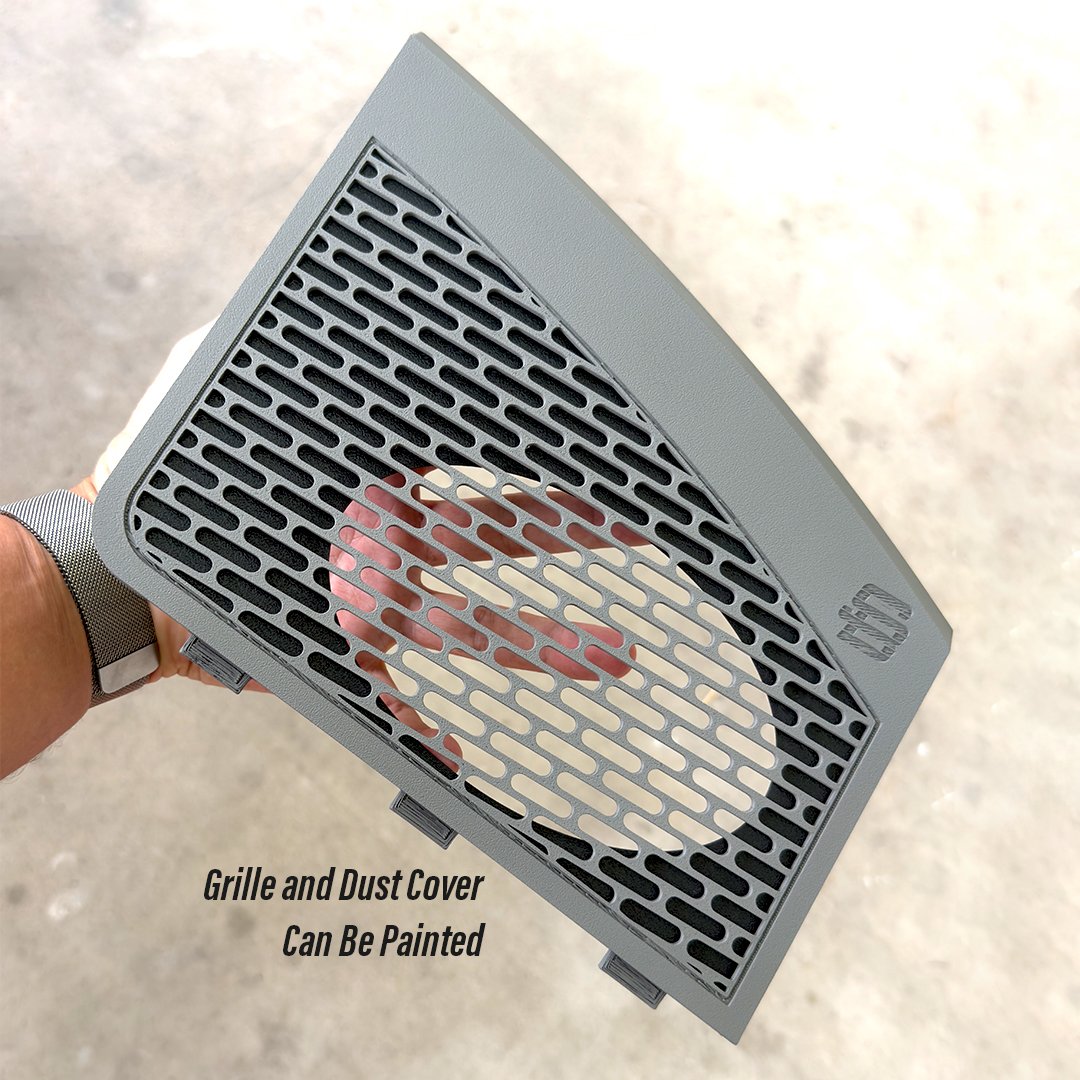

Painting & Finishing Guide

Because our parts are 3D-printed using industrial ASA-CF (Carbon Fiber) and ABS-GF (Glass Fiber) polymers, they naturally feature a micro-textured matte surface that minimizes layer lines while providing extreme heat resistance.

If you choose to paint or color-match your parts, keep in mind that raw paint applied directly over composite prints will amplify surface layer lines and micro-voids.

Recommended Painting Process:

• Use High-Build Filler Primer: Apply several coats of high-build automotive spray primer. The high-solid formula fills layer lines and micro-voids between print layers.
• Wet Sand Between Coats: Block-sand using 400 to 600-grit sandpaper between primer coats to level out the surface for a smooth finish.
• Avoid Traditional Body Filler / Spot Putty: Do not use standard body filler or Bondo. Composite 3D prints expand and contract under cabin heat cycles at a different rate than body filler, which can cause cracking, swelling, or adhesion failure over time.
• Base & Clear: Once primed and sanded smooth, apply your choice of automotive basecoat and clearcoat.

What are 1988–1994 Chevy OBS custom speaker grilles?

1988–1994 Chevy OBS custom speaker grilles are re-engineered replacement dash speaker covers for early GMT400 trucks, designed with magnetic retention and carbon-fiber composite materials.

How do these speaker grilles improve on the original factory design?

They eliminate weak plastic front tabs that snap off during installation, replacing them with a full-length magnetic strip, while re-engineering the rear tabs to prevent binding and grille breakage.

Why is this speaker grille set made in two separate parts?

The two-piece design consists of a main grille body and a removable dust cover, giving you the choice to run open grilles or separate the pieces to paint them different colors without back-masking.
